Harnessing Shaft Collars: A Comprehensive Guide to Efficient Power Transmission

Shaft collars, seemingly unassuming yet indispensable components, play a pivotal role in securing and positioning elements within mechanical assemblies. Their ubiquitous presence in industrial machinery, automotive systems, and countless other applications underscores their critical significance in ensuring optimal performance and reliability.

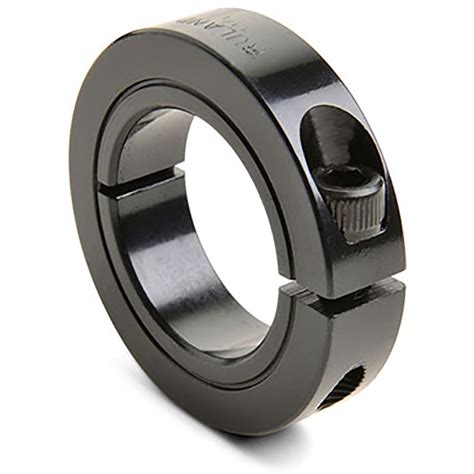

Introduction: Unlocking the Power of Shaft Collars

Shaft collars, also known as locking collars or shaft locking devices, serve as the unsung heroes of power transmission systems. These versatile components perform a myriad of crucial functions, including:

• Securely locking: Shaft collars provide a secure grip on rotating shafts, preventing axial movement and ensuring the precise positioning of components.
• Preventing slippage: By firmly clamping onto the shaft, shaft collars eliminate the risk of slippage, maintaining the integrity of the power transmission system.
• Accommodating shaft variations: Shaft collars come in various sizes and clamping mechanisms, enabling them to accommodate shafts with varying diameters and tolerances.
• Facilitating ease of maintenance: Shaft collars simplify the assembly and disassembly of mechanical components, reducing downtime and maintenance costs.

Types of Shaft Collars: A Tailored Solution for Every Need

The diverse range of shaft collars available caters to the varied requirements of different industrial applications. Each type possesses unique characteristics, making it the ideal choice for specific scenarios.

1. Keyless Shaft Collars

• Advantages: Simple installation, no need for keyways, provides a strong grip
• Applications: Conveyors, pumps, blowers, general machinery

2. Split Collars

• Advantages: Two-piece design allows for easy installation and removal without disassembling the shaft, accommodates large shaft tolerances
• Applications: Packaging machinery, printing presses, food processing equipment

3. Set Screw Collars

• Advantages: Secure locking due to multiple set screws, compact design
• Applications: Gearboxes, couplings, pulleys, machine tools

4. Taper Bushings

• Advantages: Excellent torque transmission capacity, accommodates large radial loads, easy to install and remove
• Applications: Heavy machinery, power transmission systems, conveyor belts

5. Expanding Collars

• Advantages: Self-centering, provides vibration dampening, suitable for high-speed applications
• Applications: Automotive systems, machine tools, medical equipment

Materials: Engineering Excellence for Durability and Performance

The material composition of shaft collars directly influences their durability, performance, and suitability for specific applications. Common materials include:

• Steel: High strength, wear resistance, suitable for heavy-duty applications
• Stainless steel: Corrosion resistance, high fatigue strength, ideal for harsh environments
• Aluminum: Lightweight, low cost, suitable for low-load applications
• Plastic: Non-conductive, lightweight, suitable for non-critical applications

Sizing and Selection: Precision Engineering for Optimal Fit

Selecting the appropriate shaft collar size is paramount for ensuring proper performance and preventing premature failure. Factors to consider include:

• Shaft diameter: Measure the shaft diameter accurately using a caliper
• Clamping range: Choose a collar with a clamping range that accommodates the shaft diameter
• Material: Consider the material compatibility with the shaft and the application requirements
• Type: Determine the type of shaft collar based on the desired locking mechanism and installation requirements

Table 1: Shaft Collar Dimensions and Clamping Ranges

Installation and Maintenance: Ensuring Longevity and Reliability

Proper installation and maintenance of shaft collars are essential for maximizing their lifespan and preventing operational issues.

Installation:

• Clean the shaft: Remove any dirt, grease, or burrs from the shaft surface before installing the collar.
• Position the collar: Place the collar in the desired location on the shaft, ensuring that it is properly aligned.
• Tighten the collar: Follow the recommended tightening torque specified by the manufacturer.

Maintenance:

• Regular inspection: Periodically check the shaft collar for any signs of wear, damage, or slippage.
• Tightening: Re-tighten the locking mechanism as needed to maintain proper clamping force.
• Lubrication: Lubricate the shaft and collar interface to reduce wear and extend service life.

Common Mistakes to Avoid: Pitfalls to Navigate for Success

Avoiding common pitfalls during shaft collar selection and installation is crucial for ensuring optimal performance and preventing costly errors.

• Incorrect sizing: Selecting a collar with an improper fit can lead to slippage, premature failure, or damage to the shaft.
• Overtightening: Excessive tightening can distort the collar and compromise its holding ability.
• Improper installation: Incorrect alignment or misalignment can result in vibration, noise, or premature wear.
• Neglecting maintenance: Failure to regularly inspect and maintain shaft collars can accelerate wear and lead to costly breakdowns.

Comparison of Shaft Collar Materials: A Comprehensive Analysis

The choice of material for shaft collars significantly impacts their performance and suitability for various applications. A comprehensive comparison of common materials is provided below:

Table 2: Comparison of Shaft Collar Materials

Effective Strategies: Maximizing Shaft Collar Performance

By employing effective strategies, the performance and lifespan of shaft collars can be significantly enhanced. Consider the following:

• Choose the right material: Select the material that best aligns with the application requirements and operating environment.
• Ensure proper fit: Measure the shaft diameter accurately and choose a collar with a suitable clamping range.
• Install correctly: Follow the recommended installation instructions and ensure proper alignment.
• Tighten adequately: Apply the appropriate tightening torque to ensure a secure hold without overtightening.
• Maintain regularly: Inspect, clean, and lubricate shaft collars as recommended by the manufacturer.

FAQs: Unraveling Common Queries

1. What is the difference between a shaft collar and a bearing?

A shaft collar is used to secure and position components on a shaft, while a bearing supports rotating shafts and reduces friction.

2. How do I choose the right shaft collar size?

Measure the shaft diameter and refer to the clamping range specifications of the collar.

3. What is the recommended tightening torque for shaft collars?

Tightening torque varies based on the collar type and size. Refer to the manufacturer's instructions.

4. How often should I inspect shaft collars?

Regular inspections are recommended, typically every six months or as specified by the manufacturer.

5. Can I use a shaft collar to transmit torque?

No, shaft collars are not designed to transmit torque and should not be used for this purpose.

6. How do I prevent slippage in shaft collars?

Ensure proper fit, use the correct tightening torque, and inspect and maintain the collars regularly.

7. What is the maximum speed at which I can use a shaft collar?

Speed limitations vary based on collar type and material. Consult the manufacturer's specifications.

8. Can I use shaft collars in hazardous areas?

Some shaft collars are designed for use in hazardous areas; consult the manufacturer for specific recommendations.
