Conformal Coating: The Ultimate Guide to Protecting Your Electronics

Introduction

In today's technologically advanced world, electronic devices play an indispensable role in our daily lives. However, these devices are often exposed to harsh environmental conditions, such as moisture, dust, chemicals, and extreme temperatures. To ensure their longevity and reliability, a protective layer known as conformal coating is applied to safeguard their sensitive components.

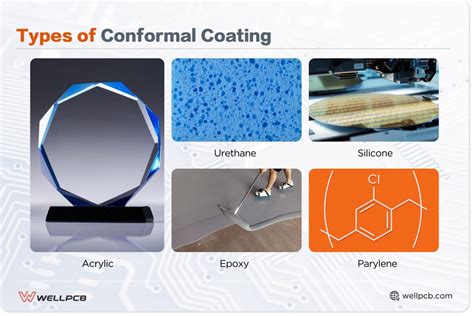

What is Conformal Coating?

Conformal coating is a thin, polymeric film that is applied to the surface of electronic assemblies to provide a protective barrier. It conforms to the shape of the components, creating a hermetic seal that prevents contaminants from reaching the delicate circuitry. This coating is typically applied using automated dispensing equipment, such as spray, dip, or brush techniques.

Benefits of Conformal Coating

• Protection from Moisture: Conformal coating prevents moisture from entering electronics, which can cause corrosion, short circuits, and device failure.
• Resistance to Dust and Contaminants: The film acts as a barrier against dust, dirt, and other particles that can interfere with electronic functions.
• Protection from Chemicals and Solvents: Conformal coatings provide resistance to a wide range of chemicals and solvents, preventing their harmful effects on components.
• Improved Electrical Insulation: The coating insulates electrical connections, preventing arcing and cross-talk between components.
• Enhanced Thermal Management: Some conformal coatings offer thermal conductivity, helping to dissipate heat from sensitive components.
• Extended Lifespan: By protecting electronics from environmental hazards, conformal coating significantly extends their lifespan and reliability.

Why Conformal Coating Matters

Electronic devices are becoming increasingly compact and complex, making them more vulnerable to environmental stresses. By applying conformal coating, manufacturers can ensure that their products:

• Perform reliably in harsh environments: Electronic devices used in outdoor applications, industrial settings, or military operations must withstand extreme conditions. Conformal coating provides the necessary protection.
• Meet industry standards: Many industries, such as aerospace, medical, and automotive, have strict requirements for electronic reliability. Conformal coating helps products meet these standards.
• Reduce warranty claims: By protecting devices from premature failure, conformal coating minimizes the risk of costly warranty claims and customer dissatisfaction.

Effective Strategies for Conformal Coating

To achieve optimal results from conformal coating, it is crucial to adopt effective strategies:

• Proper Surface Preparation: Cleaning and preparing the surface of electronic assemblies prior to coating is essential for adhesion and performance.
• Selection of Appropriate Coating: There are various conformal coating materials available, each with its unique properties. Choosing a coating suitable for the specific application and environment is crucial.
• Precise Application: Precise coating techniques ensure complete coverage and uniform thickness, eliminating defects and maximizing protection.
• Inspection and Testing: Regular inspection and testing of conformal coating ensure its integrity and effectiveness over time.

Common Mistakes to Avoid

To avoid potential issues, it is important to steer clear of common mistakes:

• Overcoating: Applying excessive coating can cause drips, bridging, and compromised performance.
• Undercoating: Inadequate coating thickness may not provide sufficient protection.
• Improper Curing: Incorrect curing parameters can result in poor adhesion and reduced effectiveness.
• Poor Quality Coating: Using low-quality or unsuitable conformal coatings can compromise device reliability.

Pros and Cons of Conformal Coating

Pros:

• Extended lifespan of electronic devices
• Enhanced reliability in harsh environments
• Protection from moisture, dust, chemicals, and temperature extremes
• Improved electrical insulation
• Reduced warranty claims

Cons:

• May impact thermal performance if the coating has low thermal conductivity
• Can be costly, depending on the coating type and application method
• May require specialized equipment and training for proper application

Case Studies and Industry Examples

• According to a study by the National Institute of Standards and Technology (NIST), conformal coating extended the lifespan of electronic devices exposed to high humidity by over 300%.
• A recent report by the International Electronics Manufacturing Initiative (iNEMI) found that conformal coating reduced warranty claims in the automotive industry by over 25%.
• Major electronics manufacturers, such as Apple, Samsung, and Sony, incorporate conformal coating in their products to ensure reliability and durability.

Conclusion

Conformal coating is a vital technology for protecting electronic devices from environmental hazards. By adopting effective strategies and avoiding common mistakes, manufacturers can enhance the longevity, reliability, and performance of their products. As technology continues to advance, conformal coating will play an increasingly important role in safeguarding our electronic world.

Additional Resources

• IPC-CC-830: Conformal Coating Handbook
• IEEE Standard 386: Standard for Conformal Coatings for Printed Circuit Assemblies
• Selecting the Right Conformal Coating for Your Application

Table 1: Conformal Coating Materials

Table 2: Benefits of Conformal Coating

Table 3: Common Mistakes in Conformal Coating
